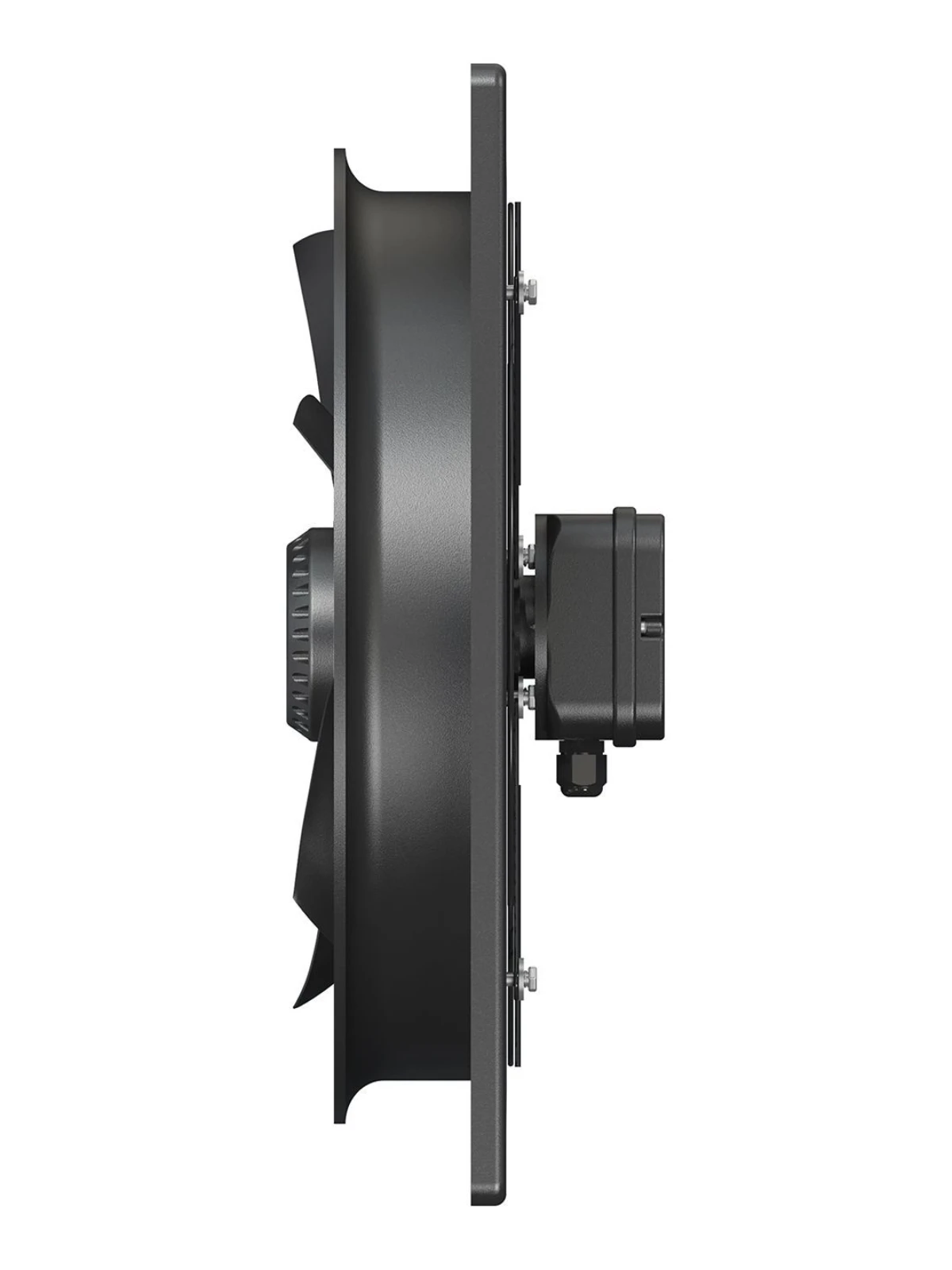

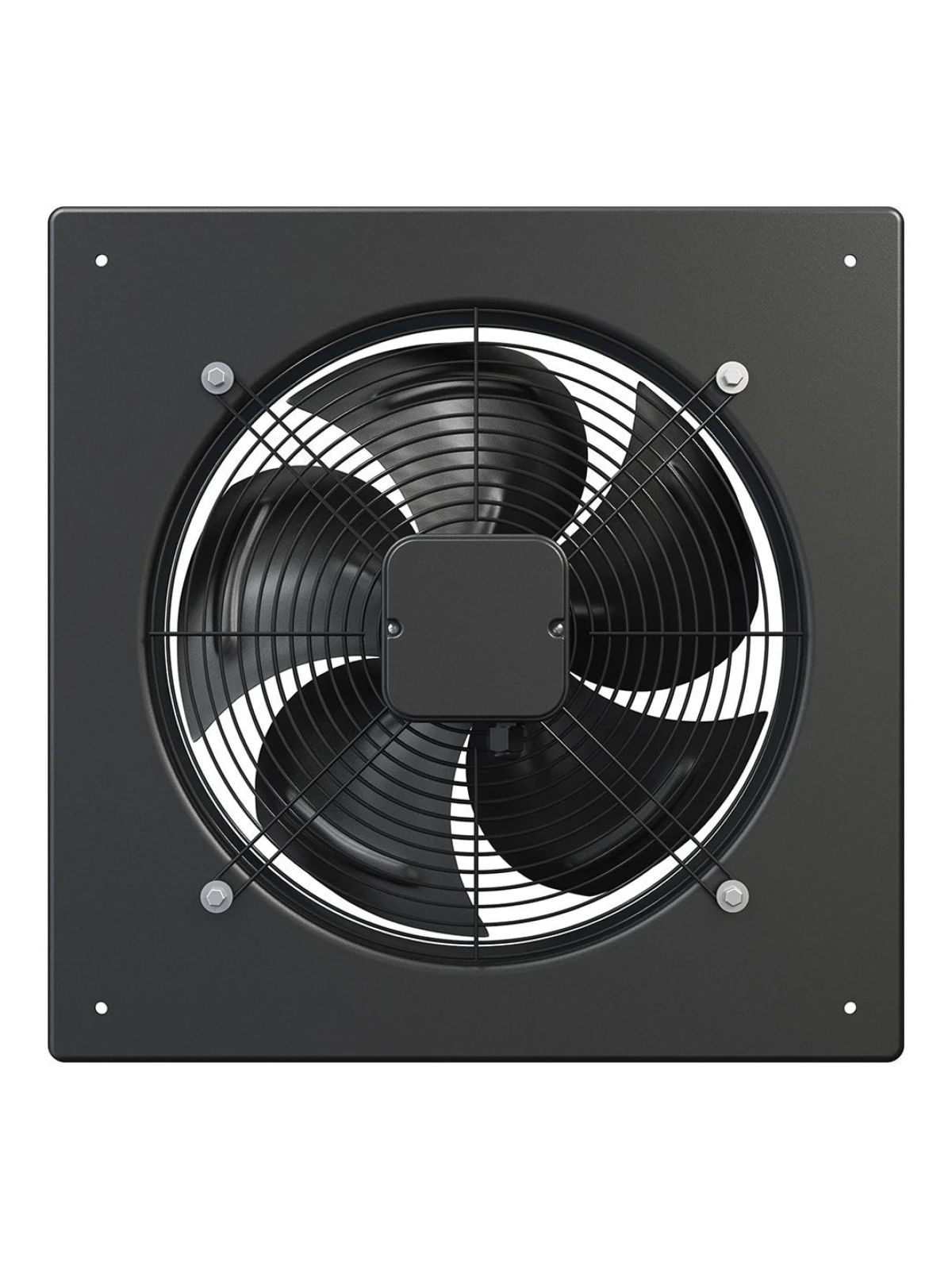

Storm 350 Axial Surface-Mounted Fan
Era Group
Ball-bearing motor, Steel, Cut out overheating protection, Protection against water sprayed from all directions.
SKU: storm350
STORM axial surface-mounted fans with protective mesh and square plate are designed for exhaust and supply/exhaust ventilation systems where high performance at relatively low system resistance is required.
They are used for wall and ceiling mounting in rooms from which large volumes of air need to be discharged; for the organization of local exhaust ventilation in rooms where it is not possible to install ventilation with ducts; for local ventilation of rooms.
Depending on the method of installation, they can be used for cooling the heat exchangers of compressor and condenser units.
The fans are available in a steel casing coated with black polymer enamel; equipped with single-phase, four (4E)- or six-pole (6D) asynchronous motors with overheating protection. Mounting is carried out using a square mounting plate.
Capacity: from 890 to 21550 m³/h.
Operating temperature: from -30 to +60 °C.
