Commercial fan Typhoon 160 2SP

Era Group

Ball-bearing motor, Speed-switch button, Self-resettable overheating protection with a restart, Dust and water splash protection.

SKU: Typhoon 160 2SP

ventilation duct commercial fan

PRICE Call For Price +961 3 374726 | +961 4 542982

Enquire about this product WhatsApp Download datasheet

Axial inline mixed-flow fans are designed for supply-exhaust ventilation systems of residential, public and industrial buildings. Fan’s body, a central part with the motor, impeller and implemented terminal box, is detachable and allows easy maintenance. It is fastened to the nozzle parts with hose clamps. Two-speed fans. The speed is controlled with cable switching inside the terminal box or with a traditional switch button (supplied with the device). Asymmetric design of the terminal box ensures easy mains cable connection. Two-speed single-phase ball-bearing motor with an extended service life. Cutout overheating protection and automatic reset. Horizontal and vertical installation. Fastening to the mounting surface is done with screws

Article . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TYPHOON 160 2SP
Trade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .markERA PRO
Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Plastic
Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gray
Protection class. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP44
Quantity in transport package. . . . . . . . . . . . . . . . . . . . . 6 pcs
Height,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm238
Width,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm190
General depth,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm340
Installation diameter,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm159
Diameter external,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm159

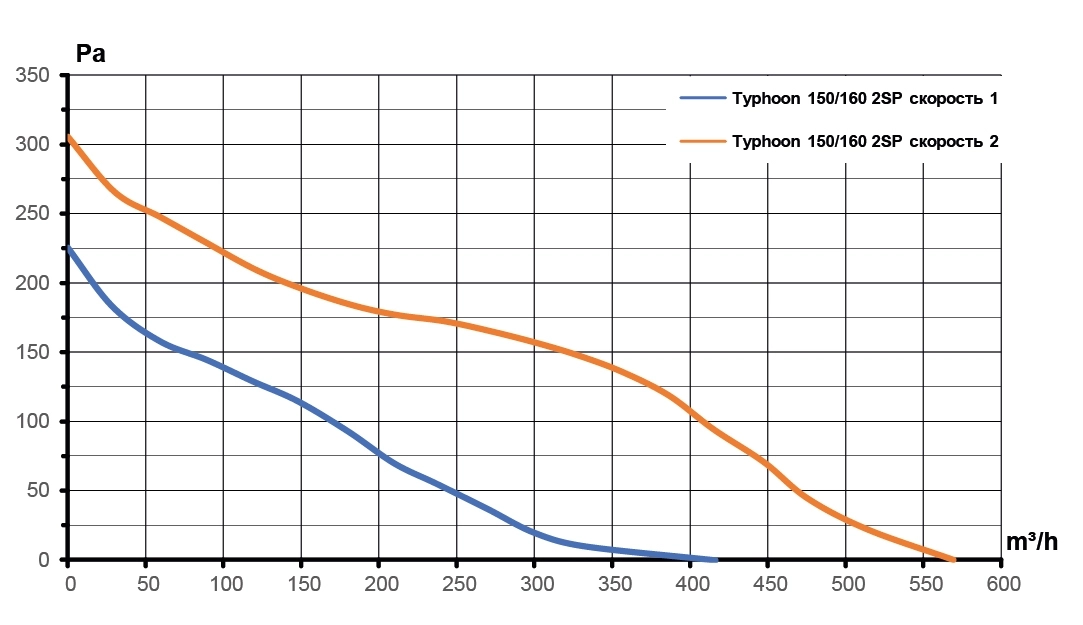

Performance, M3 / H. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415/570
Performance max,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .m3/h570
Noise level,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .DB (A)40/49
Pressure min,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pa225
Pressure max,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pa305
Voltage,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V.230
Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Channel
Working mechanism. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Axial
Principle of ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Supply and exhaust
Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mechanical
Country of origin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Russia
Gross weight,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . kg2.9
Net weight,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . kg2.4
Power consumption min,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .W42
Power consumption max,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . W50
Noise level max,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dB(A)49
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 years
