Commercial fan Typhoon100 2SP
Era Group
Featured
Ball-bearing motor, Self-resettable overheating protection with a restart, Dust and water splash protection
SKU: TYPHOON 100 2SP
Axial inline mixed-flow fans are designed for supply-exhaust ventilation systems of residential, public and industrial buildings. Fan’s body, a central part with the motor, impeller and implemented terminal box, is detachable and allows easy maintenance. It is fastened to the nozzle parts with hose clamps. Two-speed fans. The speed is controlled with cable switching inside the terminal box or with a traditional switch button (supplied with the device). Asymmetric design of the terminal box ensures easy mains cable connection. Two-speed single-phase ball-bearing motor with an extended service life. Cutout overheating protection and automatic reset. Horizontal and vertical installation. Fastening to the mounting surface is done with screws
- Article. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TYPHOON 100 2SP
- Trade mark. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ERA PRO
- Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Plastic
- Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .Gray
- Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .classIP44
- Quantity in transport package. . . . . . . . . . . . . . . . . . . . . .6 pcs
- Height, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .mm216
- Width, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .mm173
- General depth, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . mm371
- Installation diameter,. . . . . . . . . . . . . . . . . . . . . . . . . . . . mm99
- Diameter external,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .mm99

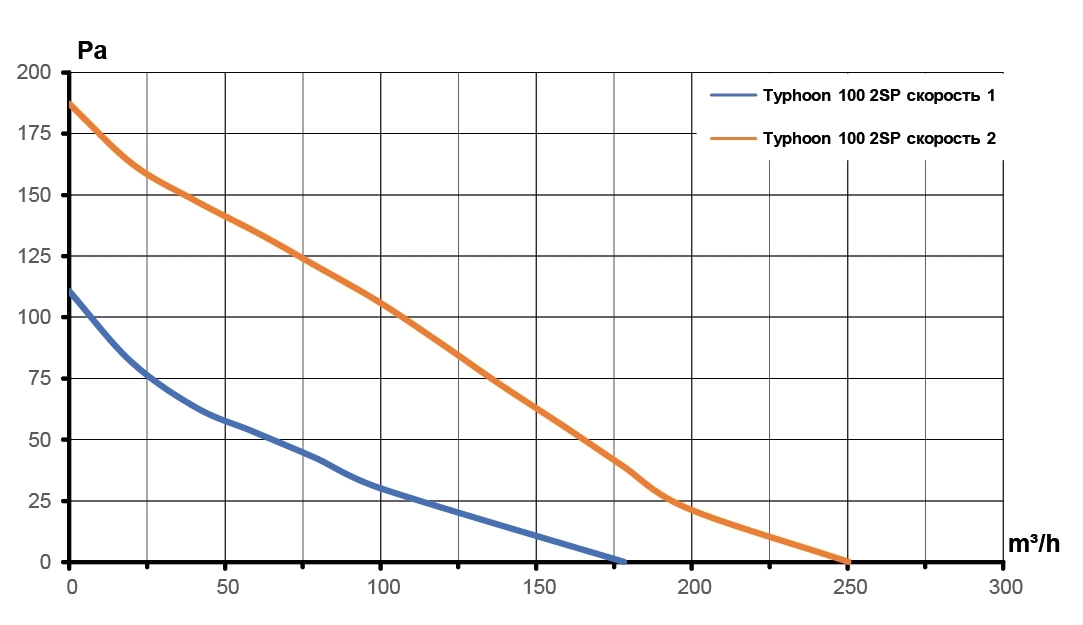

- Performance, M3 / H. . . . . . . . . . . . . . . . . . . . . . . . . . .180/250
- Performance max, m3/h. . . . . . . . . . . . . . . . . . . . . . . . . . . .250
- Noise level, DB (A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31/40
- Pressure min, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pa110
- Pressure max,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pa190
- Voltage,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .V.230
- Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Channel
- Working mechanism. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Axial
- Principle of ventilation. . . . . . . . . . . . . . .Supply and exhaust
- Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .Mechanical
- Country of origin . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .Russia
- Gross weight, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .kg2.3
- Net weight, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . kg1.8
- Power consumption min,. . . . . . . . . . . . . . . . . . . . . . . . . .W23
- Power consumption max, . . . . . . . . . . . . . . . . . . . . . . . . .W25
- Уровень шума min, . . . . . . . . . . . . . . . . . . . . . . . . . . dB(A)31
- Noise level max, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dB(A)40
- Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 years
