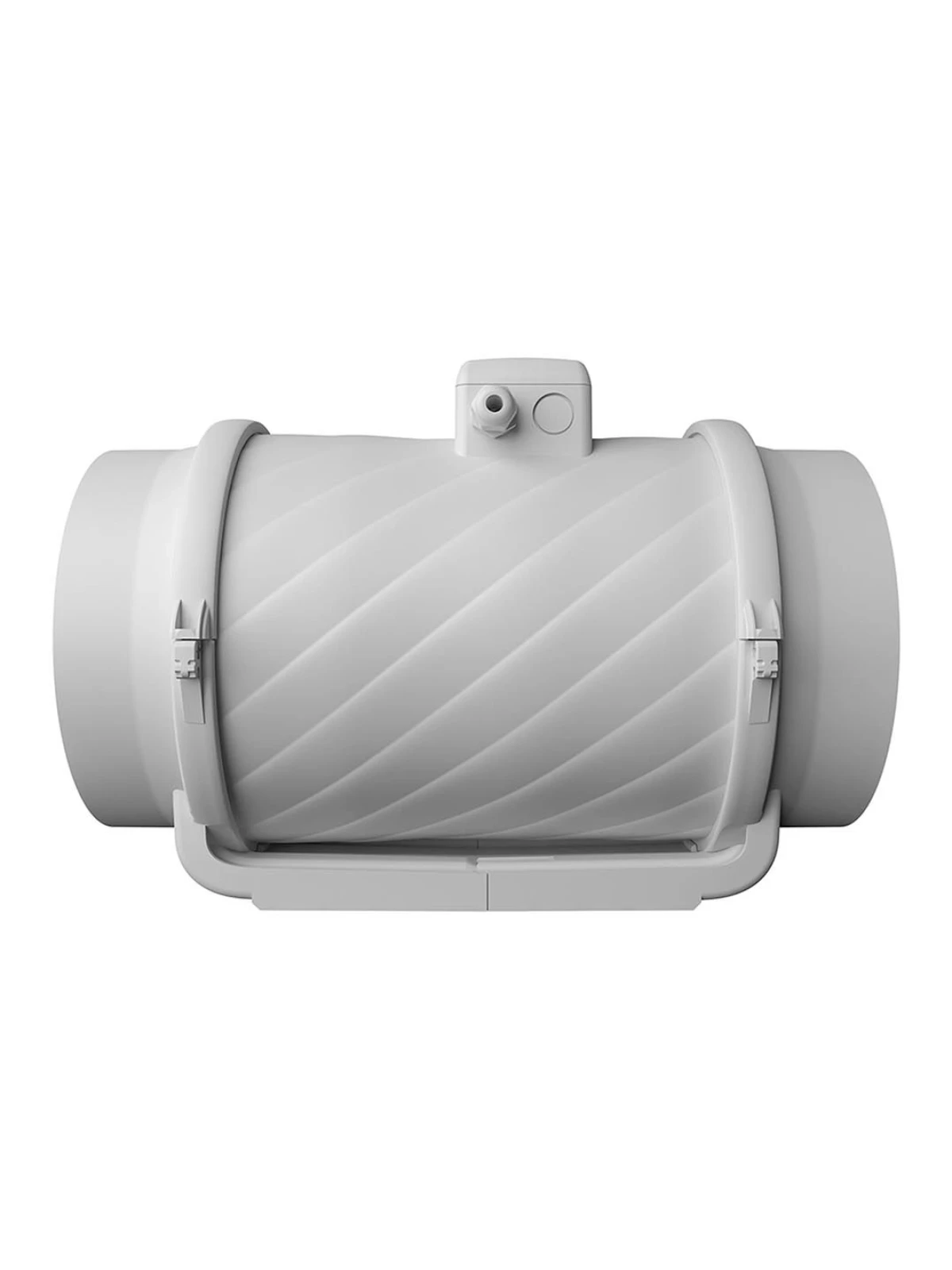

Commercial fan Typhoon 200 2SP
Era Group
Ball-bearing motor, Speed-switch button, Self-resettable overheating protection with a restart, Dust and water splash protection.
SKU: TYPHOON 200 2SP
Axial inline mixed-flow fans are designed for supply-exhaust ventilation systems of residential, public and industrial buildings.
Fan’s body, a central part with the motor, impeller and implemented terminal box, is detachable and allows easy maintenance. It is fastened to the nozzle parts with hose clamps.
Two-speed fans. The speed is controlled with cable switching inside the terminal box or with a traditional switch button (supplied with the device).Asymmetric design of the terminal box ensures easy mains cable connection.
Two-speed single-phase ball-bearing motor with an extended service life.
Cutout overheating protection and automatic reset.
Horizontal and vertical installation.
Fastening to the mounting surface is done with screws.
- Article. . . . . . . . . . . . . . . . . . . . . . . . . . . .TYPHOON 200 2SP
- Trade mark. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ERA PRO
- Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Plastic
- Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gray
- Protection class. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP44
- Quantity in transport package. . . . . . . . . . . . . . . . . . .1 pcs
- Height, mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
- Width, mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 250
- General depth, mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
- Installation diameter, mm. . . . . . . . . . . . . . . . . . . . . . 198.5
- Diameter external, mm. . . . . . . . . . . . . . . . . . . . . . . . .198.5
- Performance, M3 / H. . . . . . . . . . . . . . . . . . . . . . . 850/1100
- Performance max, m3/h . . . . . . . . . . . . . . . . . . . . . . . . 1100
- Noise level, DB (A). . . . . . . . . . . . . . . . . . . . . . . . . . . . 50/58
- Pressure min,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . Pa300
- Pressure max, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pa350
- Voltage, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V.230
- Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Channel
- Working mechanism. . . . . . . . . . . . . . . . . . . . . . . . . . . .Axial
- Principle of ventilation. . . . . . . . . . . . .Supply and exhaust
- Contro. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . lMechanical
- Country of origin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Russia
- Gross weight,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . kg4.7
- Net weight,. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . kg4
- Power consumption min, . . . . . . . . . . . . . . . . . . . . . . . .W75
- Power consumption max, . . . . . . . . . . . . . . . . . . . . . . W105
- Noise level max, dB(A). . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
- Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years
