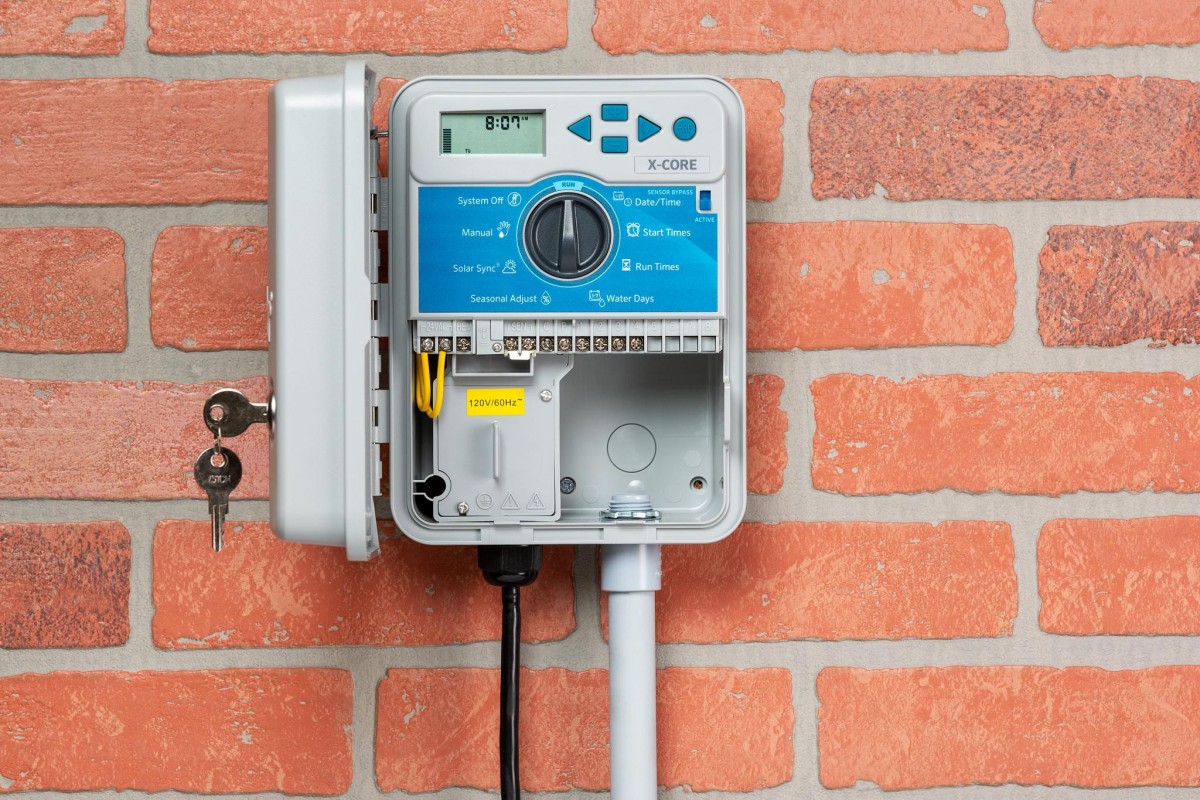

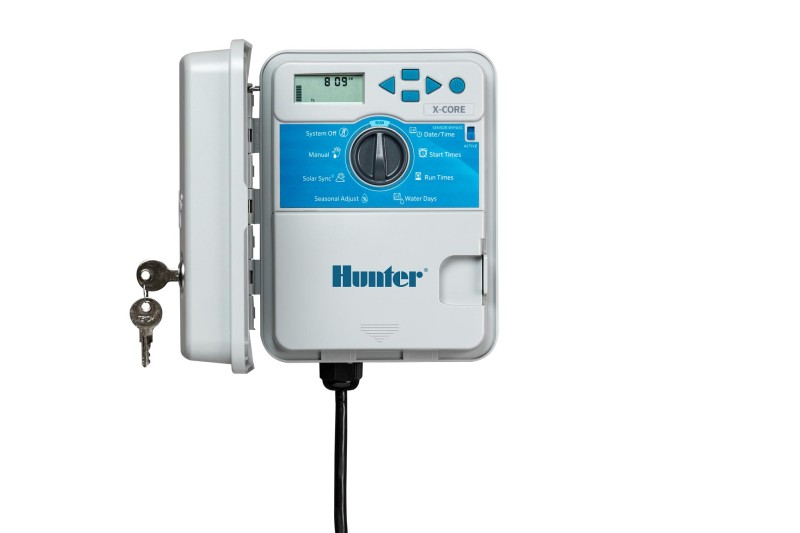

X Core Irrigation Controller
Hunter
- Number of Stations: 2, 4, 6, 8
- Type: Fixed
- Smart: Save water and money by installing a Solar Sync® weather sensor.
- Versatile: Up to 8 stations with 3 programs and 4 start times each.
- Maintenance: Cycle and Soak, Seasonal Adjust, and other water-saving features.
SKU: XCORE
This entry-level residential controller offers simple operation with “smart” Solar Sync™ compatibility. With easy-to-configure control for up to 8 stations, including 3 programs and 4 start times each, the X-Core is the perfect solution for residential applications. Plug in the smart Solar Sync ET Sensor and the X-Core is converted into a “smart controller,” to regulate irrigation runtimes based on locally measured weather. The X-Core is also compatible with Hunter remotes for quick, wireless activation of irrigation. Installation, operation and maintenance are designed to be simple while still delivering optimal efficiency or reliability.
- Transformer input: 120 VAC or 230 VAC
- Transformer output (24 VAC): 1 A
- Station output (24 VAC): 0.56 A
- P/MV output (24 VAC): 0.28 A
- Sensor inputs: 1
- Approvals: Plastic IP54 (outdoor), UL, cUL, FCC, CE, UKCA, RCM
- Warranty period: 2 years
