Table Saw TC-TS 2025/2 U
Mains supply
220-240 V | 50 Hz
Power
1800 W
Max. power (S6 | S6%)
2000 W | 25 %
Idle speed
5000 min^-1
Saw blade
250 mm x 30 mm
Number of saw teeth
24 Pieces
Swiveling range of saw blade
45 °
Max. cutting height at 45°
65 mm
Max. cutting height at 90°
85 mm
Height adjustment continuous
0-85 mm
Diameter of suction adapter
36 mm
Working height
850 mm
Size of working table
563 mm x 583 mm
Table broadening left
583 mm x 165 mm
Table broadening right
583 mm x 165 mm
Logistical data
Length
711 mm
Width
624 mm
Height
333 mm
Gross weight single packaging
22.46 kg
Product weight
19.24 kg
The Einhell bench-type circular saw TC-TS 2025/2 U saw is a powerful device with which enables ambitious DIY enthusiasts to work with solid wood, fiberboard and many other similar materials. It is supplied with a carbide-tipped precision saw blade, the height and angle of which can be adjusted by one hand easily using the 2in1 saw blade adjustment. The improved parallel guide makes it easy to realize perfect longitudinal cuts, while the cross stop and the tiltable saw blade are perfect for mitre cuts. The table extensions enlarge the surface additionally. The dust extraction at the housing and at the saw blade cover help for cleaning the air. For all included tools, guides, the push stick and the cable are appliances for the stowage.
- Table width extension left and right for wide workpieces
- Improved, stable parallel stop for exact cuts
- 2 in 1 saw blade adjustment (height and angle with one hand)
- Cross stop with angle scale (+/- 60°) for simple mitre cuts

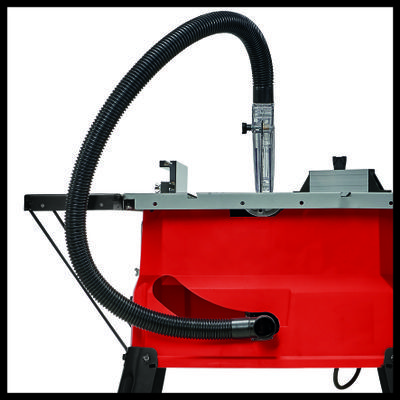

- Chip extractor connection at the housing and the saw blade cover
- Includes base frame for pleasant working height at 850 mm

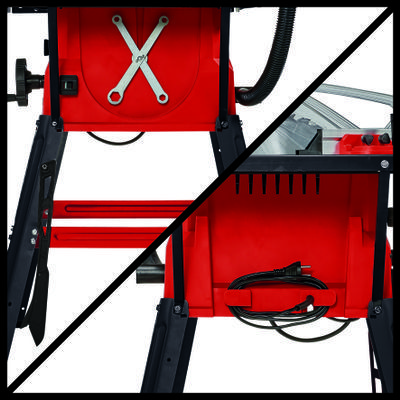

- Holder at the housing to wrap the power cord
