Power Generator (Petrol) TC-PG 10/E5
Technical data
Type of generator
Synchronous
Frequency
50 Hz
Continous power (S1) at 230 V
680 W
Max. power | time (230 V)
800 W
Power (S2 | S2time) at 230 V
700 W | 5 min
Nominal current at 230 V
2.96 A
230 V socket
1 Pieces
Engine
two-stroke, air cooled
Number of cylinders
1 Pieces
Engine displacement
63.5 cm³
Engine speed
3000 min^-1
Max. engine power
1 kW
Fuel
Mixture
Capacity of fuel tank
4 L
Running time with 2/3 load
6.6 h
Logistical data
Length
430 mm
Width
353 mm
Height
365 mm
Gross weight single packaging
20.3 kg
Product weight
18.8 kg

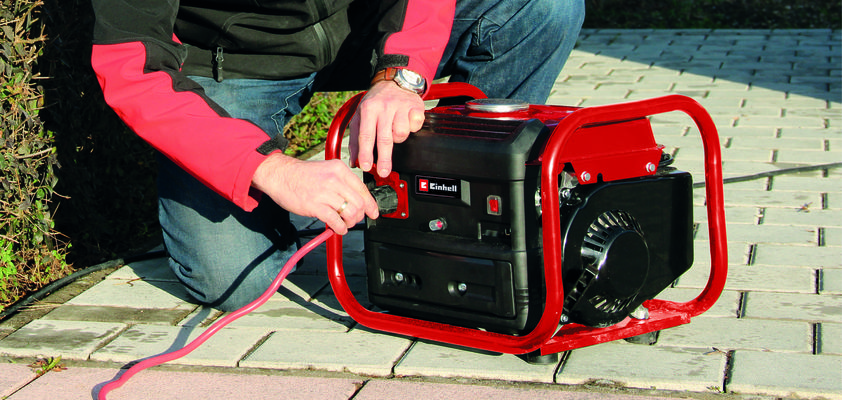

The Einhell TC-PG 10/E5 generator (petrol) is powered by a powerful, robust and clean 2-stroke motor and generates a continuous output of 680 W: It is ideal wherever electricity needs to be generated independently of the mains supply: in allotments, on building sites, when camping, in worksheds and garages, or even for vacations. The electricity is supplied via a standard 230 V socket to which all devices can be connected, such as lamps, gardening equipment, tools or kitchen appliances. The Einhell generator has a support frame for protecting the device and for user-friendly transport, and sturdy legs ensure that it stands firmly and safely in operation. To protect the generator and connected equipment it has an overload cut-out and a low oil cut-out. Starting the generator is simplicity itself thanks to a cable pull.
- Powerful, robust and clean 2-stroke drive motor
- One 230 V socket where a consumer can be supplied with power
- Carry-frame for protection of the device and easy transport
- Stable feet for a safe stand during operation
- Overload switch to protect the socket in case of overload
- Easy to use cable pull for starting
