Tile Laser GTL 3

Brand:

Additional data
Projection	3 lines
Working range	20 m
Laser diode	635 nm, < 1 mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range with target plate	20 m
Angular accuracy (between 0 – 90° angle)	±0.4 mm/m* (*plus use-dependent deviation)
Dust and splash protection	IP 54
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	18 h in 2-line mode
Weight, approx.	0.44 kg
Working range, value	20 m

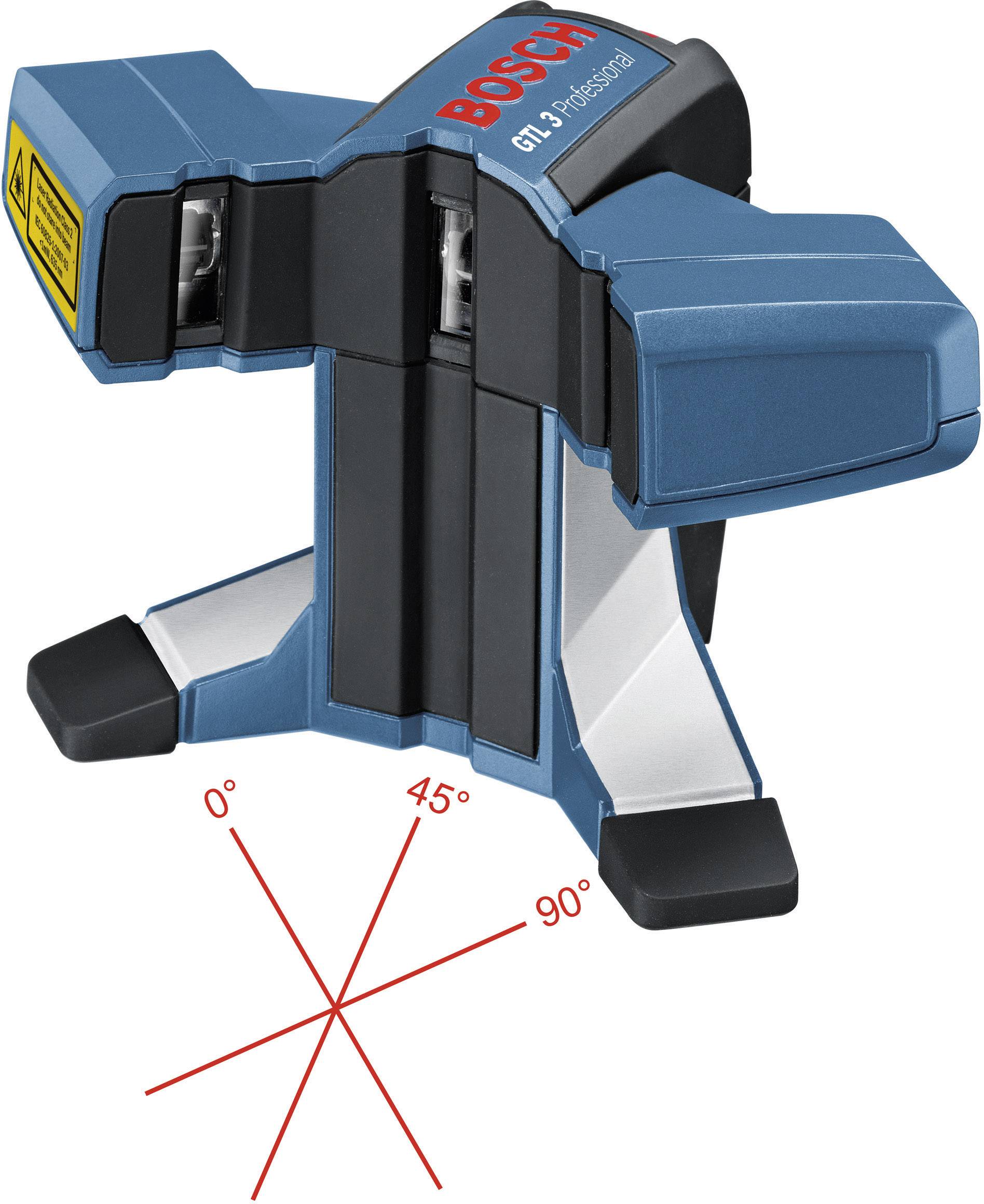

In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
High accuracy of 0.2 mm/m
Compact and lightweight design for optimum ease of use
