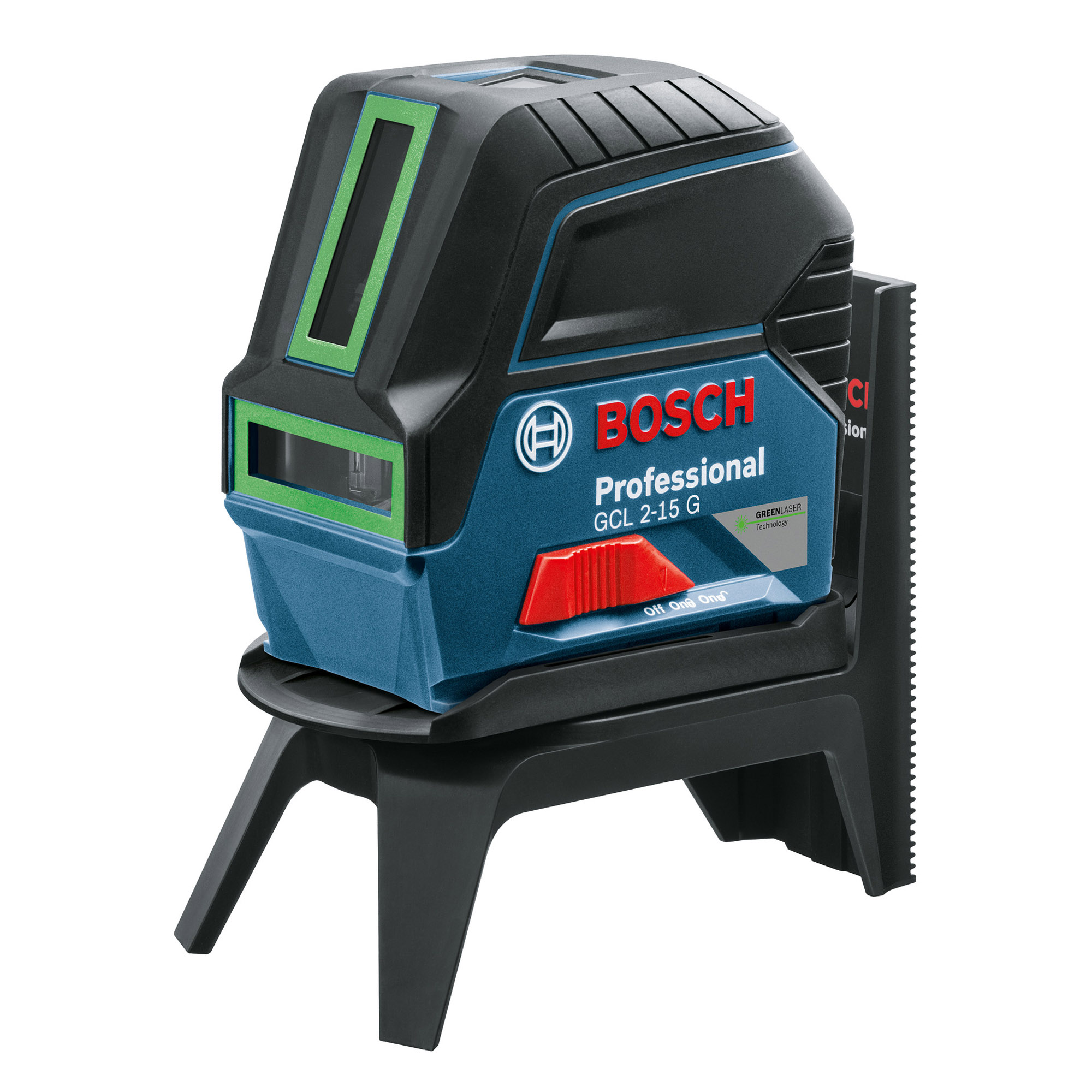

Combi Laser GCL 2-15G

Call for Price

Additional data
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 2 lines / 2 points
Working range up to 15 m
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser diode Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW
Laser class 2
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 10 h in line and point mode, 12 h in line mode, 22 h in point mode
Tripod thread 1/4″, 5/8″
Weight, approx. 0.49 kg
Colour of laser line green
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value 15 m
  • Green laser lines for up to four times better visibility

    • Green horizontal and vertical laser lines for up to four times better visibility than red lines

    Precise transfer applications thanks to red plumb points

  • Rotating mount RM 1 Professional allows laser lines to be easily aligned around the plumb points

Up to four times better visibility with green laser lines and perfectly versatile – this is Bosch´s combi laser GCL 2-15 G Professional. The two laser lines allow for precise vertical and horizontal alignment, while red plumb points simplify transfer applications. Easily align laser lines around the plumb points with the versatile rotating mount RM 1 Professional.

The GCL 2-15 G Professional is suitable for various jobs such as suspending drop-ceilings, installing drainage pipes and laying floors. It also offers point transfers for light mountings.

The GCL 2-15 G Professional has a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust with IP54 dust and splash water protection. When the tool is switched off, the pendulum automatically locks for safe transportation and convenient storage.
