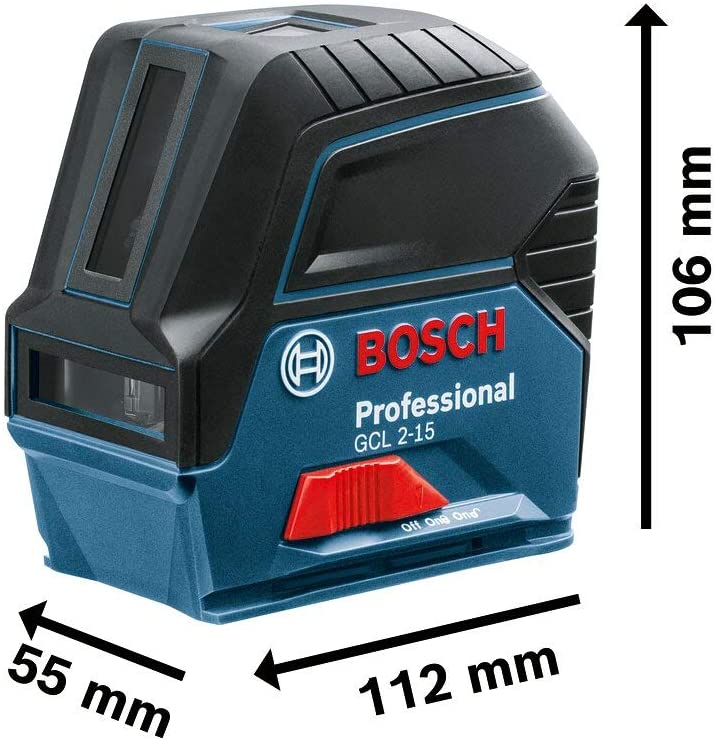

Combi Laser GCL2-15

Call for Price

Brand:

  • Bosch
Additional data
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 2 lines / 2 points
Working range up to 15 m
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser diode 630 – 650 nm, < 1mW
Laser class 2
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 6 h in cross line and point mode, 8 h in cross line mode, 12 h in line and point mode, 16 h in line mode, 22 h in point mode
Tripod thread 1/4″, 5/8″
Weight, approx. 0.49 kg
Color of laser line red
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value 15 m

Advantages

Compact and versatile for short-distance leveling applications

  • Both horizontal and vertical lines are perfect for short-distance leveling applications
  • Enjoy precise transfer applications thanks to two centered plumb points
  • Rotating mount RM 1 Professional allows laser lines to be easily positioned around the plumb points

The combi laser GCL 2-15 Professional convinces through its compact design and is especially suitable for short-distance leveling applications. By projecting both horizontal and vertical laser lines and two centred plumb points, this combi laser supports completing leveling tasks quickly. Its plumb points make precise transfer applications easy and convenient. Aligning the laser lines around the plumb points is simple thanks to its rotating mount RM 1 Professional.

The GCL 2-15 Professional is suitable for various applications such as mounting shelves and windows, installing drainage pipes, and laying floors. It also offers point transfers for light mountings.

The GCL 2-15 Professional provides a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust thanks to IP54 dust and splash water protection. When switching off the tool, the pendulum’s lock-mechanism allows for safe transportation.
